STANDARD FEATURES
Clamp with max 8.8" ID (224 mm) bore
Grip Jaws for 2.5"-8.8" OD (63 mm - 224 mm)casings
Hydraulic Breakout Wrench for drill rods
Center Rod/Auger Holding Plate
40,000 lbs of drip, 17,000 ft.lbs of breakout torque
DESCRIPTION
The Hands-Free Safety Clamps have the best of both types of clamping systems, but are safer and quicker to use. They blend the standard clam clamp system with a bottom rod wrench and a top set of breakout clamps.
The Safety Clamps provide a 8.8" ID bottom clam clamp which doubles up as a holder for the rod wiper when rod drilling. It can even grip PVC sewer pipe without damaging it for simple casing installation, great for geothermal. Inter the middle is a rod/auger holding plate to stop the drill string from turning or dropping down the hole.
The top clamps can grip 2.5" OD pipe to 8.8" casing with a combined gripping force of over 40,000lbs with a breaking out torque of up to 17,000 ft.lbs.
Available for retrofit applications.

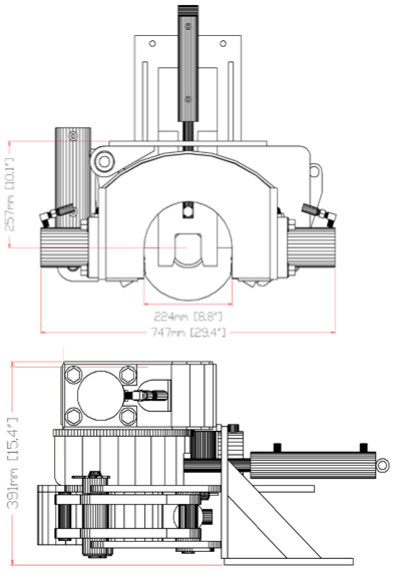

DIMENSIONS & WEIGHT
| Width | 29.4" (747 mm) |
| Height | 15.4" (391 mm) |
| Max ID (bottom) | 8.8" (224 mm) |
| Max ID (top) | 8.8" (224 mm) |
| Min ID (top) | 2.5" (63 mm) |
| Gripping Force (top) | 40,000 lbs (18,140 kg) |
| Breakout Torque (bottom) | 17,000 ft.lbs |
CONTROLS & OPERATIONS
Lever #1 Open and Close. Bottom clamp. Up to 8.8" ID
Lever #2 In and Out. Center Rod/Auger holding plate
Lever #3 Open and Close. Top clamp 2.5" to 8.8" ID
Lever #4 Breakout Action. top clamp twist to undo rods
