K40 Long Mast Drilling Rig


Fast, Efficient & Powerful

The K40 Long Mast Drilling Rig and Remote Power Unit uses 5 ft (2 m) long drill rods with the high torque JT-200 series of rotation heads for geothermal, geotechnical foundation and micro piling drilling applications.

The JT-200 series of rotation heads feature a 2-3/8" (60 mm) center bore for mud or air flushing or grout injection with the included 90 degree, max 2,500 PSI (172 bar) top swivel.

The rotation head drive flange can be coupled with an adapter to fit the customers drill rods or casings for various applications and drill methods. With optional setups for mud or air drilling the K40 Short Mast Drilling Rig is compatible with all drill rods and augers currently available.

Additional tooling may be required to suit various drilling applications.

K40 long Mast Drilling Rig

Technical Specifications

POWER & HYDRAULICS
System Pressure 3,000 psi (206 bar)
Max Flow 33 gpm (124 lpm)
Max Pullback 19,800 lbs (8,980 kg)
Max Pushdown 16,000 lbs (7,257 kg)
Engine Power 83 hp (62 kW)
Fuel Tank 31 gallons (117 L)
Hydraulic Tank 55 gallons (189 L)
Cooling System Air Cooled
MAST MOVEMENT
Side to Side Movement +/-30°
Fore and Aft +3° to -90°
Slide Available Option
RIG DIMENSIONS & WEIGHT
Height (Drilling Position) 10'11" (3.6 m)
Height (Transport Position) 59" (1.5 m)
Length (Drilling Position) 83" (2.1 m)
Mast Stroke 7'10" (2.4 m)
Width 34" (863 mm)
Weight 3,300 lbs (1,500 kg)
Track Width 34-52" (863 - 1,320 mm)
Track Length 61" (1,550 mm)
ROTARY HEADS : (JT-200 Series)
Max Torque 10,400 ft-lbs with JT205 (14,000 Nm)
Max Speed 205 rpm
Through Bore 2-3/8" (60mm)
Speeds 2 Speed Variable
POWER UNIT DIMENSIONS & WEIGHT
Length (including tow kit) 90" (2,275 mm)
Width (outside wheel base) 55" (1,395 mm)
Height 74" (1,879 mm)
Weight 2,866 lbs (1,300 mm)
STANDARD FEATURES
Clam Clamps & Breakout Wrench 9" OD (229 mm) bore
3 Position Manual Stabilizer Jack Legs
Width Adjustable Crawler Tracks 34" - 52" (863 - 1,320 mm)

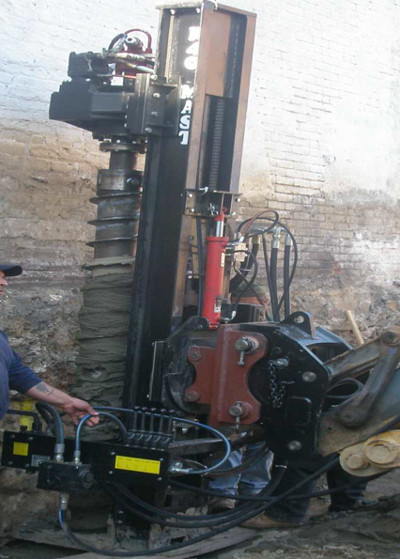

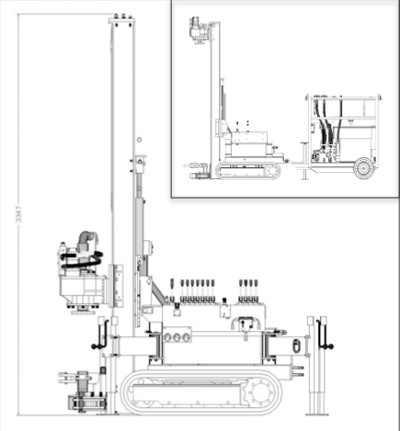

K40 long Mast Drilling Rig K40 Long Mast Drilling Rig Diagram
