| Continuous power (KW) | Max oil flow (l/min) | Max pressure (bar) | Max torque (Nm) | Rotation speed (rev/litre) |
| 8 | 60 | 210 | 1.200 | 2,8 |

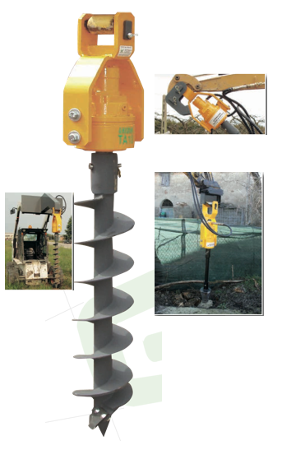

Our new auger drive units TA and TB series have been planned to best suit mini excavators with a weight ranging from 1 to 6 tons. The new-generation gear unit, built by our team, assures a better ruggedness and reliability as it is entirely built of steel.
Steel Gear Unit the gear unit is completely built of steel, both internally and externally, for a better resistance to possible accidental hits.
Without Drain The motor works only with the in and out oil pipes. There is no need to modify the excavator
Double Effect The auger bit turns both clockwise and counter-clockwise
Dual Articulation Possibility to swing back and front, left and right
Wedge Splitter Use to split wood logs
Arm Connection Possibility both of a direct connection (with pins) and a quick hitch VT56 / VT61
Auger Bit with Pengo Auger bit for mixed soils, of different lengths and diameters. Possibility of extendable auger bit
Auger Bit with Knives Auger bit for soft soils, different lengths and diameters. Possibility of extending the auger bit
Auger Bit with Widia Teeth Auger for rocky soils, different lengths and diameters. Possibility of extending the auger bit
VT52-VT62 Optional safety device
UT - Connection plate std bobcat for users on skid loaders
Technical Details
| Model | TA18 | TA20 | TA26 | TA30 | TB20 | TB26 |
| Maximum oil flow l/min | 35 | 40 | 50 | 60 | 100 | 100 |
| Maximum pressure bar | 220 | 220 | 220 | 220 | 210 | 210 |
| Delivered power (continuous kw) | 10 | 12 | 11 | 20 | 20 | 18 |
| Displacement L | 0.34 | 0.42 | 0.7 | 0.6 | 0.6 | 0.9 |
| Displacement cc | 80 | 100 | 100 | 100 | 100 | 100 |
| Motor | Orbital | |||||
| Gear Unit | Planetary Steel | |||||
| Speed rev/l | 2.9 | 2.1 | 1.3 | 1.6 | 1.6 | 0.9 |
| Max torque KNm | 1.15 | 1.32 | 2 | 1.93 | 19.3 | 2.94 |
| Output | Hexagonal | |||||
| Gear Ratio | 4.26 | 4.26 | 4.26 | 5.77 | 5.77 | 5.77 |
| Weight KGs | 50 | 50 | 50 | 55 | 55 | 55 |
| Excavator weight tonne's | 0.8-1.3 | 1.3-2 | 2.0-2.5 | 2.0-4.0 | 2.5-4.0 | 3.0-6.0 |

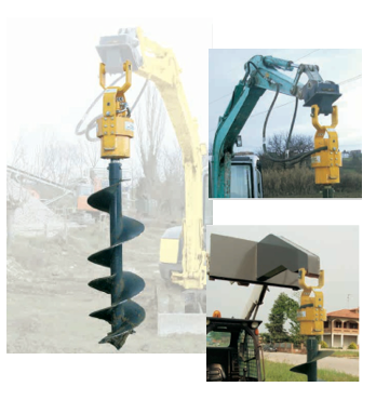

Our new auger drive units in the TK series have been planned to best suit midi excavtors with a weight ranging from 5 to 15 tons. The new generation gear unit, built by our team, assures a better ruggedness and reliability as it is entirely built of steel.
Steel Gear Unit the gear unit is completely built of steel, both internally and externally, for a better resistance to possible accidental hits.
Without Drain The motor works only with the in and out oil pipes. There is no need to modify the excavator
Double Effect The auger bit turns both clockwise and counter-clockwise
Dual Articulation Possibility to swing back and front, left and right
Wedge Splitter Use to split wood logs
Arm Connection Possibility both of a direct connection (with pins) and a quick hitch VT56 / VT61
Auger Bit with Pengo Auger bit for mixed soils, of different lengths and diameters. Possibility of extendable auger bit
Auger Bit with Knives Auger bit for soft soils, different lengths and diameters. Possibility of extending the auger bit
Auger Bit with Widia Teeth Auger for rocky soils, different lengths and diameters. Possibility of extending the auger bit
VT52-VT62 Optional safety device
UT - Connection plate std bobcat for users on skid loaders
Technical Details
| Model | TK10 | TK16 | TK20 | TK25 | ||
| Maximum oil flow l/min | 220 | 210 | 200 | 200 | ||
| Maximum pressure bar | 21 | 22 | 23 | 25 | ||
| Delivered power (continuous kw) | 0.34 | 0.42 | 0.7 | 0.95 | ||
| Displacement cc | 100 | 160 | 200 | 250 | ||
| Motor | Orbital | |||||
| Gear Unit | Eplycyclical | |||||
| Speed rev/l | 1.6 | 1.1 | 1 | 0.9 | ||
| Max torque KNm | 1.79 | 2.678 | 3.2 | 5 | ||
| Output | Hexagonal | |||||
| Reduction | 6.2 | 6.2 | 6.2 | 6.2 | ||
| Weight KGs | 120 | 120 | 130 | 130 | ||
| Excavator weight tonne's | 5.8 | 5.8 | 8.15 | 8.15 | ||

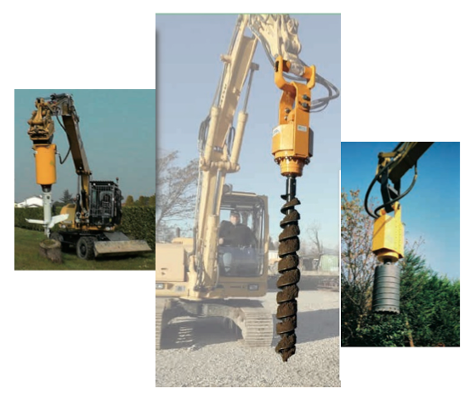

Our new auger drive units in the TV-TS-TT series can be supplied with a wide range of auger bits, available in different diameters and lengths and suitable for every type of soil (soft, mixed, rocky). Moreover, extensions in different diameters and lengths are also available, allowing you to reach the depth desired.
Auger Bit With Pengo Auger bit for mixed soils, of different lengths and diameters. Possibility of extending auger length
Auguer Bit C/W Knives Auger bit for soft soils, of different lengths and diameters. Possibility of extending auger length
Auger Bit With Widia Teeth Auger bit for rocky soils of different lengths and diameters. Possibility of extending auger length
Possibility of Extensions with or without flight
Double Affect The auger bit turns both clockwise and counter clockwise
Dual Articulation Possibility to swing back and front, left and right
Technical Details
| Model | TV40 | TV60 | TV90 | TS08 | TS09 | TT40 | TT60 |
| Maximum oil flow l/min | 200 | 200 | 310 | 320 | 370 | 450 | 550 |
| Maximum pressure bar (Mpa) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Max torque (Nm) | 11.000 | 16.000 | 24.000 | >50100 | >78800 | 81.000 | 99.000 |
| Rotation speed )rev/litre) | 0,5 | 0,33 | 0,23 | 0,2 | 0,12 | 0,07 | 0.06 |
| Weight of the machine (ton) | 10-25 | 10-25 | 25-40 | 25-42 | 25-42 | 30-80 | 30-80 |
| Output (mm) | 70 | 70 | 70 | 100 | 100 | 130 (square) | 130 (square) |
| Continuous power (kW) | 60 | 90 | 110 | 110 | 110 | 130 | 135 |
