Advanced Clamping Systems - Double Breakouts

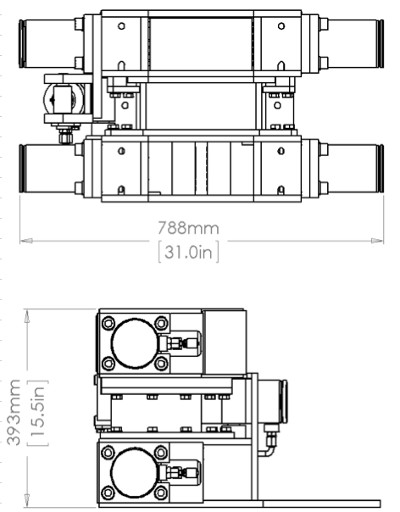

Advanced Clamping System Diagram

OPERATING SPECIFICATIONS

3,000 PSI (200 bar) Max Pressure
3.5 GPM (12 LPM) Recommended Flow
8 Bolt Back/Bottom Plate Mount Type
5 Cylinder Configuration - Grip & Breakout Twist Action
3 Lever Hydraulic Spool Control Bank

DESCRIPTION

The Double Breakout Clamps have an adjustable internal diameter to accommodate both drill rods and larger casings. The ID can be further reduced to 0.75" (19 mm) with optional ' long jaw-blocks'. Equipped with a top set of swivelling hydraulic clamps for breakout actions and a fixed set of bottom clamps for gripping. The jaw-blocks have replaceable hardened steel teeth or 'jaw inserts' to seurely hold casings and rods.

The distance between the top and bottom set of clamps is adjustable for various types of drill rod couplings. The slew ring is a bolt together assembly for easy maintenance. The Double Breakout Clamps are specifically designed for rope thread casings to allow thread float.

Available for retrofit application and with clamp pressure controls and flow balancers for smooth operation.

DIMENSIONS & WEIGHT

Width 31.0" (788 mm)
Height 15.5" (394 mm)
Weight 309 lbs (140 kg)
Max ID (top & bottom) 9.0" (228 mm)
Min ID (top & bottom) 1.56" (40 mm)
Gripping Force (top & bottom) 50,000 lbs (22,700 kg)
Breakout Torque (top) 22,600 ft.lbs (30,650 Nm)

CONTROLS & OPERATIONS

Lever #1 Open and Close. Bottom clamp. Up to 8.8" ID

Lever #2 In and Out. Center Rod/Auger holding plate

Lever #3 Open and Close. Top clamp 2.5" to 8.8" ID

Lever #4 Breakout Action. top clamp twist to undo rods

Advanced Clamping System
